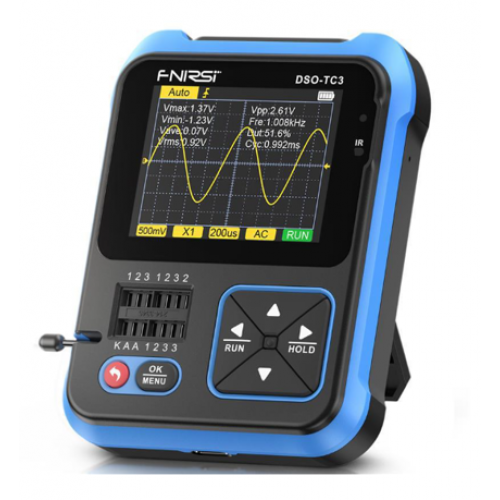

FNIRSI Digital Oscilloscope and Transistor Tester DSO-TC3 WITH P6100 High Voltage Probe

Description

FNIRSI Digital Oscilloscope and Transistor Tester DSO-TC3 WITH P6100 High Voltage Probe Price in BD

Discover precision and versatility with the FNIRSI Digital Oscilloscope and Transistor Tester DSO-TC3. Perfect for electronics professionals and hobbyists, this compact device combines a full-featured oscilloscope with an advanced transistor tester. Paired with the P6100 High Voltage Probe, it ensures safe and accurate measurements even at higher voltages. Easy to use, portable, and durable — a must-have tool for diagnosing circuits and testing components in any workshop or lab. CityTech BD

Specifications:

Product Name: 3in1 Digital Oscilloscope

Material: ABS
Type: Standard configuration, High configuration (Optional)
Display: 2.4 inch TFT color screen
Battery: Built-in 1500mah rechargeable lithium battery (Included)
Charging interface: USB Type-C, +5V
Oscilloscope digital: 10MSa/s
Real-time sampling rate: 500Khz
Analog bandwidth: 1mio Ω
Input resistance: AC/DC
Coupling method: 400V
Test Voltage Ranges: 10mV-10V
Vertical Sensitivity (x1): 1us-10s
Horizontal Time Ranges:
Trigger Mode: Auto/Normal/Single
Trigger Type: Rising Edges/Falling Edges
Waveform Freeze : yes
Automatic measurement: yes

Transistor Tester:
Capacitor: 25pF~100mF
Resistance: 0.01Ω~50m-Ω
Inductance: 10uH~1000uH
Battery: 0.1~4.5V
Input voltage: 0~40V
DS18B20: 0-85℃
DHT1: 0-60°C/5-95%

Signal Generator:
Sinewave: 1-10KHz/0-3.3V/50%
Squarewave: 1-100KHz/3.3V/50%
Pulsewave: 1-100KHz/3.3V/0-100 %
Trianglewave: 1-10KHz/0-3.3V/50%
Ramp: 1-10KHz/0-3.3V/0-100%
Continuous current: 0-3.3V

Product Size: 110*76*30mm / 4.33*2.99*1.18in
Package Size: 140*125*55mm / 5.51*4.92*2.17in
Package Weight:
Standard Configuration: 300g / 10.58oz
High Configuration: 345g / 12.17oz

Package Includes:

1 x 3in1 Digital Oscilloscope
3 x Test hook
1 x Type Cable-C

1 x P6100 High Voltage Probe

1 x Ordinary Probe

1 x Adapter
1 x User Manual. CityTech BD
