Frame 330 F330 With Integrated PCB Electronic Hobby Kit DIY 4 Axis RED BLACK WHITE Arm Frame Electrical Circuitry & Parts

Description

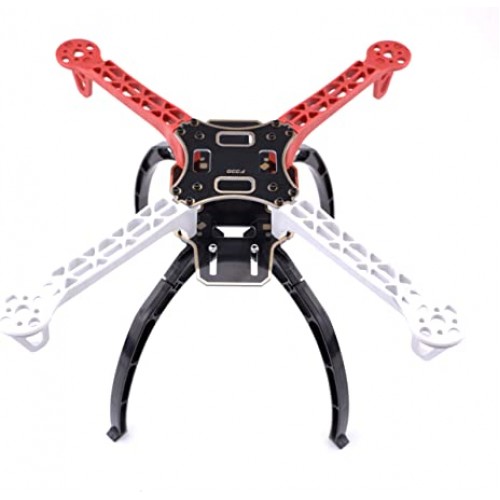

Descriptions: F330 Glass Fiber Mini Quadcopter Frame 330mm

F330 Frame 330mm Frame F330 4-Axis 4 Arm Kit With Integrated PCB Wiring 4 Axis F330 Frame Parts For RC Quadcopter Frame Kits

This F330 Quadcopter Frame is made from Glass Fiber which makes it tough and durable. They have the Arms of ultra-durable Polyamide Nylon which are the stronger molded arms having a very good thickness so no more arm breakage at the motor mounts on a hard landing. The arms have support ridges on them, which improves stability and provides faster forward flight. CityTech BD

The Arms of the frame are colored as 2 red and 2 white which can guide you to fly in the right direction.

The F330 Glass Fiber Mini Quadcopter Frame is strong, light, and has a sensible configuration including a PCB(Printed Circuit Board) with which you can directly solder your ESC‘s to the Quadcopter. So, making the Quadcopter build fast and easy. So, it avoids the use of extra PDB and makes the mounting clean and neat. The F330 Quadcopter Frame is highly flexible frame during mounting of various components like flight, Controller, Battery etc. CityTech BD

Specifications:

  • Model: F330
  • Material: Glass Fiber + Polyamide Nylon
  • Wheelbase: 330mm
  • Weight: 160gm
  • Arm Size: 155×34mm
  • Motor Mounting Hole Dia.: 3mm CityTech BD

Features:

  • Made by advanced engineering material, super strong & smooth
  • Easy to assemble and disassemble.
  • The frame is tough and durable.
  • The main glass fiber frame has good strength.
  • The arm equips support ridges for better and faster forward flight.
  • Features pre-threaded brass sleeves.
  • In-built power distribution board.

Recommendation (NOT Included ):

  • Motors: 2212 1400KV Brushless Motor
  • ESCs: 20A Brushless ESC
  • Propeller: 8045
  • Battery: 3S-4S LiPo
  • Flight Controller: Naza Lite or CC3D
  • Takeoff Weight: 600g ~ 1200g

Package Include:

  • 1 x F330 quadcopter Frame(Top and Bottom) with Integrated PCB.
  • 4 x F330 arms (Red+ White).
  • 2 x Accessories set.
