Description
The ESP32 Dev Board CH340 - USB-C is a type of development board designed for use with the ESP32 microcontroller, which is a popular choice for IoT and embedded systems projects. The CH340 refers to the USB to serial converter chip used on the board, which allows for communication with the ESP32 via a USB connection.
The board features a USB Type-C port, which is used to connect the board to a computer or other device for programming and debugging. The USB Type-C connector provides a reversible plug orientation, which can make it easier to connect the board without worrying about which way the plug is oriented.
The board also includes a variety of other features, including a built-in Wi-Fi and Bluetooth module for wireless connectivity, a micro-USB port for power, and a series of headers for connecting various sensors, modules, and other components.
The ESP32 Dev Board CH340 - USB-C is compatible with the Arduino IDE, which makes it easy to write and upload code to the board. It can be used for a wide range of applications, including home automation, robotics, and sensor networks.. CityTech BD

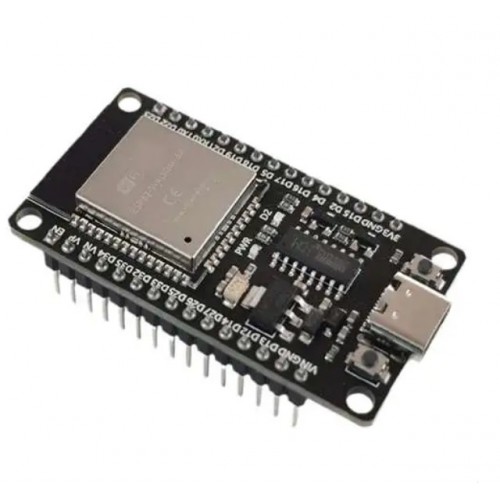

Product Images are shown for illustrative purposes only and may differ from the actual product.
Features:
- USB Type-C port: The board features a USB Type-C port for easy connectivity and data transfer.
- Built-in Wi-Fi and Bluetooth: The board has a built-in Wi-Fi and Bluetooth module for wireless connectivity.
- Low power consumption: The ESP32 chip on the board is designed for low power operation, making it a good choice for battery-powered projects.
- Arduino-compatible: The board can be programmed using the Arduino IDE, which is a popular platform for building embedded systems.
- Extensive I/O: The board has a wide range of I/O pins and headers for connecting sensors, motors, and other components.
Applications:
- IoT devices: The ESP32 Dev Board CH340 - USB-C is commonly used for IoT projects that require wireless connectivity and low-power operation.
- Home automation: The board can be used to build home automation systems that allow you to control your lights, thermostat, and other appliances using a mobile app or web interface.
- Robotics: The ESP32 Dev Board CH340 - USB-C can be used to control motors, sensors, and other components in robotic projects.
- Wearable technology: The board's low power consumption and small form factor make it a good choice for wearable projects.
- Smart agriculture: The board can be used to build systems for monitoring soil moisture, temperature, and other environmental factors in agricultural settings. CityTech BD
| General Specification | |
| Microprocessor | 32-bit 240 MHz |
| Supply Voltage | 5V |
| Wi-Fi | 2.4 GHz |
| Bluetooth | 4.2 |
| SPI Flash | 4 MByte (32Mbit) |
| ROM | 448 KB |
| SRAM | 520 KB |
| SRAM in RTC | 16 KB |
| Antenna | PCB |
| Power | USB Type-C Connector, or via pin header |
| Buttons | Reset and User/Firmware |
| LED | User and Power |
| USB Type-C connector | Yes |
| Virtual USB port | CH340 |
| Module | ESP-WROOM-32 |
| Dimensions | 51.5 x 28.5mm |
| Shipment Weight | 0.010 kg |
| Shipment Dimensions | 11 × 8 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
Documentation:
- Installing ESP-32 in Arduino IDE
- ESP-32 Arduino Sample Code
- ESP32 WROOM 32 Datasheet
- ESP-32 Which IO Pins Should you use?
- Blinking an LED with ESP-32 - 3 Steps
- Installing MicroPython
- Additional Information
- ESP32-DEV Dimensions and Pin Spacing
Package Includes:
1 x ESP32 Dev Board CH340 - USB-C
