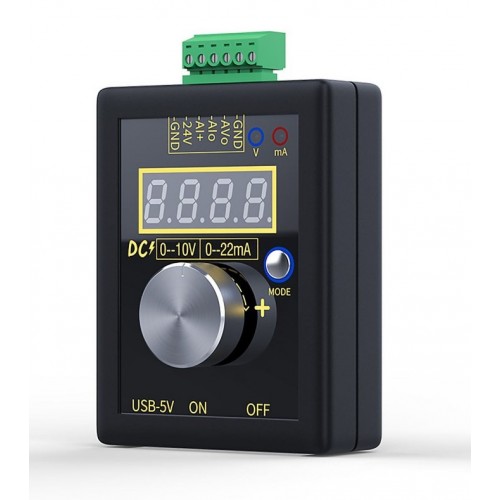

High-Precision Digital 4-20mA 0-10V Voltage Signal Generator 0-20mA Current Transmitter Loop Simulator in Bangladesh (BD)
SG-002 Analog 0-12V 4-20mA Signal Generator for PLC and Panel
Debugging & Device Testing is designed to simulate 0-12V voltage signal and
0-24mA current signal for PLC and panel Debugging, Device Testing, Frequency
Converter, Flow Valve, etc. Very easy to use, it can be connected with micro
USB 5V power supply. What’s more, it can display 4 different types of digits,
0-12V voltage, 0-24mA current, 0-100 percent, and 0-50HZ. It plays an important
role in your electronics work. CityTech BD
Features:
The voltage and current signal generator is the most commonly used electrical test instrument for electrical engineers and technicians during onsite installation, commissioning, overhaul and maintenance of electrical equipment.
- Pluggable terminal blocks, safe and convenient wiring
- a4-digit high-definition digital tube, the display brightness is evenly adjustable (1-8 brightness).
- Aluminum knob cap, electroplating button, high-quality film, charging indicator, battery switch.
- Three power supply methods: external power supply, DC5V micro USB, built-in lithium battery (only when type 1 is selected, the built-in lithium battery charging mode can be used). As long as you work all the way, you can also connect at the same time.
- DC 15-30V external power supply, which can share the 24V power supply of PLC and other equipment.
- MicroUSB universal interface, can be connected to mobile power, charger, computer USB port, etc. CityTech BD
- On the normal operation screen, save a voltage and current value, click the encoder to save, and after releasing the "OK" button, the screen displays "...", indicating that the save is successful. After restarting, the saved value will be displayed directly, and there is no need to adjust the parameters every time when starting up, which is very practical.
- Easy to carry and small in size, it is the best choice for on-site debugging. CityTech BD
| General Specification |
| Material: | ABS |
| Color: | black |
| Voltage output: | 0-10V |
| Current output: | 0-22mA |
| Charging method: | built-in lithium battery, external power supply, DC5V micro USB |
| Battery: | 1*Lithium battery, 3.7V, 1100mAh |
| Size: about | 89 x 69 x 28mm / 3.5 x 2.7 x 1.1in |
| Shipment Weight | 0.115 kg |
| Shipment Dimensions | 9 × 7 × 3.8 cm |
Package Includes:
1 x High-precision Digital 4-20mA 0-10V Voltage Signal Generator 0-20mA Current Transmitter Loop Simulator. CityTech BD
