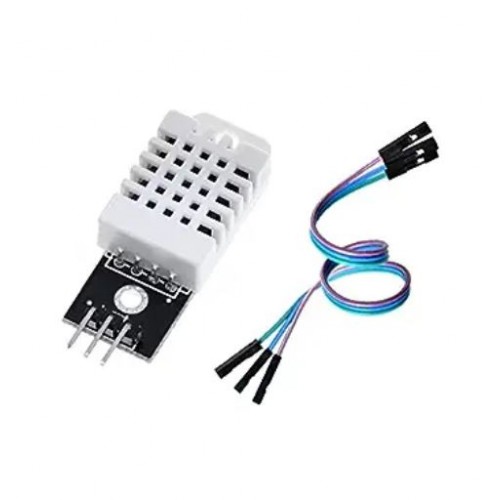

DHT22 Digital Temperature Humidity Sensor Module

Description

The DHT22 Digital Temperature and Humidity Sensor Module AM2302 is a basic, low-cost digital temperature and humidity sensor. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air and spits out a digital signal on the data pin (no analog input pins needed).

It’s fairly simple to use but requires careful timing to grab data. The only real downside of this sensor is you can only get new data from it once every 2 seconds, so when using our library, sensor readings can be up to 2 seconds old. CityTechBD

Note: The color of connecting wire may vary. You may get any color while shipping. CityTechBD

Features :

  1. High precision
  2. Capacitive type
  3. Full range temperature compensated
  4. Relative humidity and temperature measurement
  5. Calibrated digital signal
  6. Outstanding long-term stability
  7. Extra components not needed
  8. Long transmission distance
  9. Low power consumption
  10. 4 pins packaged and fully interchangeable CityTechBD
General Specification
ModelAM2302
Operating Voltage3 ~ 5.5V
Accuracy resolution0.1
Humidity range0-100%RH
Temperature range-40~80°C
Humidity measurement precision±2%RH
Temperature measurement precision±0.5°C
Length (mm)43
Width (mm)15
Height (mm)10
Weight (gm)7
Shipment Weight0.01 kg
Shipment Dimensions5 × 4 × 2 cm

Please allow 5% measuring deviation due to manual measurement. CityTechBD

Package Includes :

1 x DHT22 Digital Temperature and Humidity Sensor Module AM2302

1 x Connecting Cable
