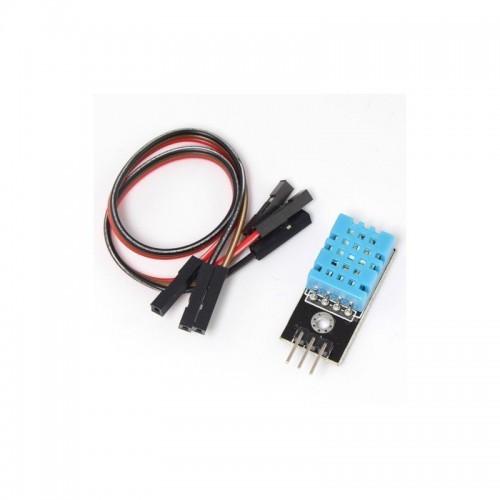

DHT11 Temperature and Relative Humidity Sensor Module for Arduino

Description

The DHT11 Humidity & Temperature Sensor Module is a basic, low-cost digital temperature and humidity sensor. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air and outputs a digital signal on the data pin (no analog input pins needed). Its very simple to use, and libraries and sample codes are available for Arduino and Raspberry Pi. CityTech BD

This DHT11 Humidity & Temperature Sensor Module makes is easy to connect to an Arduino or microcontroller as it includes the pull-up resistor required to use the sensor. Only three connections are required to be made to use the sensor – Vcc, Gnd, and Output. We have also included the cables required to connect the DHT11 to a microcontroller. CityTech BD

CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD

Features:

  1. Low-cost Module.
  2. 5V power and I/O.
  3. 2.5mA max current use during conversion (while requesting data).
  4. Good for 20-80% humidity readings with 5% accuracy.
  5. Good for 0-50°C temperature readings ±2°C accuracy.
  6. No more than 1 Hz sampling rate (once every second).
  7. It comes with cables to make connections to a microcontroller. CityTech BD
General Specification
ModelDHT11
Input Supply voltage (VDC)3.3 ~ 5
Supply Current (mA)measurement 0.3mA standby 60μA
Temperature range (°C)0 ~ 50
Temperature measurement error±2°C
Humidity measurement range20% ~ 95%RH
Humidity measurement error±5%RH
Resolution16 Bit
Output formDigital output
Length (mm)28
Width (mm)13.5
Height (mm)7
Weight (gm)448
5
Shipment Weight0.03 kg
Shipment Dimensions5 × 4 × 3 cm

Documentation:

  1. Gravity: DHT11 Temperature & Humidity Sensor For Arduino
  2. Datasheet
  3. Relative humidity to absolute humidity and vice versa calculators
  4. Interface DHT11 Module With Arduino (lastminuteengineers) CityTech BD

Package Includes:

1 x DHT11 Temperature And Humidity Sensor Module.

3 x Female to Female connecting cable

CityTech BD CityTech BD CityTech BD
