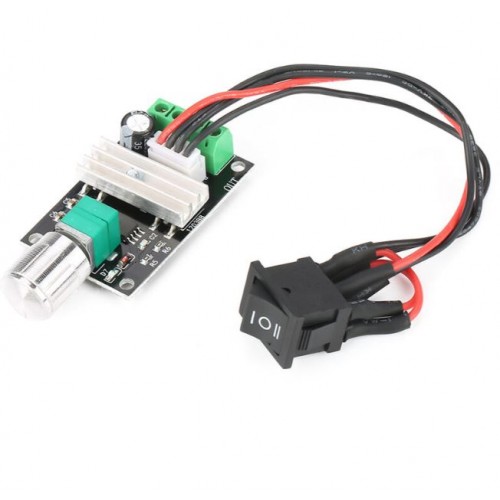

DC Motor Speed Controller PWM 6V 12V 24V 3A Forward Reverse Switch in Bangladesh (BD)

The DC Motor Speed Controller PWM 6V12V24V is designed to control the speed of a DC motor through Pulse-Width-Modulation (PWM) techniques. It offers precise speed control by adjusting the duty cycle of the PWM signal. With a continuous current output of 3A, it can power your DC motor or other DC loads effectively. The built-in 3A fuse ensures the protection of the controller and the connected motor. Additionally, this controller allows for the reverse connection of the power supply and offers the convenience of controlling the forward/reverse direction and stopping the motor using a switch. The input power range is DC 6-28V, providing versatility for various applications. Equipped with a potentiometer that also functions as a switch, and a 15cm switch cable, this DC motor speed controller offers flexibility and ease of use. CityTechBD

Note: Product Images are shown for illustrative purposes only and may differ from the actual product.

Features:

DC motor speed controller based on Pulse-Width-Modulation (PWM)
Continuous current output of 3A for driving DC motors or other DC loads
Built-in 3A fuse for protection against overcurrent
Supports reverse connection of the power supply
Enables control of forward/reverse direction and stop of the motor through a switch
Input power range: DC 6-28V
Potentiometer with switch function for easy speed control and on/off operation
15cm switch cable for convenient connection

Applications:

Motor speed control in robotics and automation projects
DIY electronic projects involving DC motors
Industrial machinery and equipment
Automotive applications
Home automation and appliances. CityTechBD

General Specification
Product Name	DC Motor Speed Controller PWM 6V12V24V
Current Output	3A
Input Power Range	DC 6-28V
Control Method	Pulse-Width-Modulation (PWM)
Fuse	3A (Built-in)
Reverse Connection	Supported
Switch Cable Length	15cm
Shipment Weight	0.0313 kg
Shipment Dimensions	11 × 7 × 3 cm
