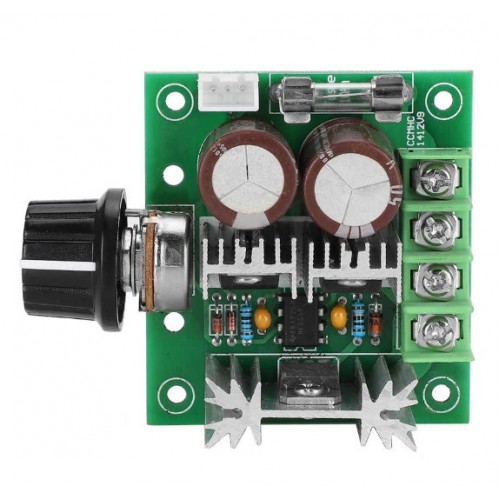

PWM 12-40V DC Motor Speed Controller Regulator DC 12V-40V 10A PWM DC Motor Adjustable Speed Control CVT Switches Craft Electronic PCB Board Module

Description

Price: 2,750৳
Stock: In Stock
Product Code: 660
Model: CTBD-0048

DC Motor Controller 10A PWM Variable Speed Board Module 12~40V <br/> in Bangladesh

Maximum control power of the motor control is up to 400W.
The speed regulation range is from 10~100%.
The control mode is by pulse width modulation which will be not affected by noise.
The controller can control speed,temperature and light.
Wide range of working voltage between DC12~40V. CityTechBD

Feature:
1. The controller can control speed,temperature and light.

2. Wide range of working voltage between DC12~40V.

3. The control mode is by pulse width modulation which will be not affected by noise.

4. Maximum control power of the motor control is up to 400W.

5. The speed regulation range is from 10~100%. CityTechBD

CityTechBD CityTechBD CityTechBD CityTechBD CityTechBD CityTechBD CityTechBD CityTechBD CityTechBD

Specification:
Item Type:Motor Speed Controller
Working Voltage:DC12~40V
Rated Current:8A
Maximum Current:10A
Static Current:0.02A(Standby Mode)
Control Power:0.01~400W
Potentiometer:Resistance B100K,Hole 8mm
Regulation Range:10~100%
PWM Frequency:13KHz
CityTechBD CityTechBD CityTechBD CityTechBD CityTechBD
Package List:
1 x DC 12V-40V 10A PWM DC Motor Adjustable Speed Control. CityTech BD
