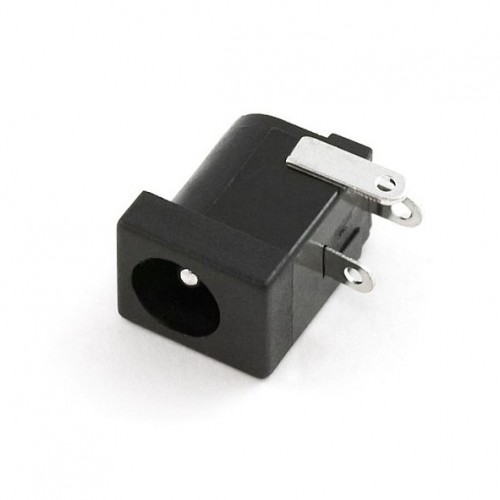

DC barrel jack

Description

DC-005 Female DC Power Jack Supply Socket 5.5×2.1mm is a good quality power connector compatible with all 5.5 male power jack from different sources.

It is 2.1×5.5mm PCB mountable jack widely used in DIY hobby projects as well as in many robotics application for DC supply voltage connection up to 30 V.

Features:

  1. Temperature: -30°C ~ +70°C.
  2. Rated load: up to DC 30V / 1.0A.
  3. Withstand voltage: AC 500V (50Hz)/min.
  4. Actuating force: 3N – 20N.
General Specification
Plug Type5.5 x 2.1 mm
No. of Pin3
Operating Temperature (℃)-30 ~ +70
Rated loadDC 30V / 1.0A
Contact resistance≤0.03
Insulation Resistance (MΩ)≥100
Center Pole Diameter (mm )2.1
Compatible with5.5 mm jack
Shipment Weight0.005 kg
Shipment Dimensions3 × 3 × 3 cm

Package Includes:

1 x DC barrel jack
