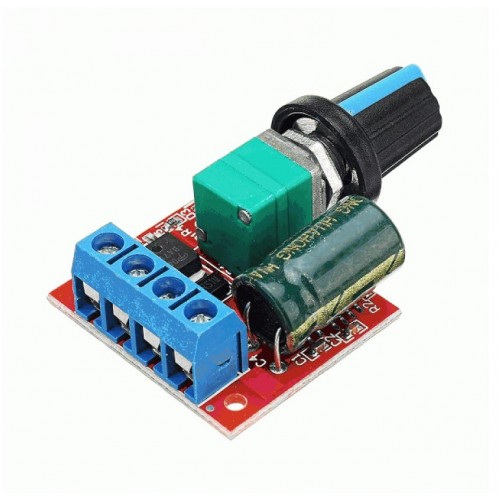

DC-5V-35V 5A PWM Motor Speed Controller

Description

3V 6V 12V 24V 35V PWM DC Motor Speed Regulator is a Mini Style DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). CityTech BD
Precautions:
  1. DC motor governor input is DC, can not directly connect to the AC (for example home 220V AC), otherwise, it will burn!
  2. DC power supply positive and negative terminals do not reverse, otherwise, the governor may be damaged.
  3. The motor can be positive or negative when the direction of operation and expectations do not match, you can adjust the line order to change the direction.
  4. Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes. CityTech BD

Features:

  1. Mini DC 4.5-35V 5A PWM Motor Speed Controller.
  2. Wide voltage DC motor speed controller.
  3. Operating voltage: DC4.5V-35V
  4. Output current: 0-5A
  5. Output power: 90W (max)
  6. PWM duty cycle: 1% -100%.
General Specification
Operating voltageDC 4.5V-35V
Output current0-5A
Output power90W (max)
Quiescent current7uA (standby)
PWM duty cycle1% -100%
PWM frequency20khz
Dimension(mm)30mm x 26mm x 14mm (Without Handle)
Shipment Weight0.016 kg
Shipment Dimensions10 × 6 × 2 cm

Package Includes:

1 x DC-5V-35V 5A PWM Motor Speed Controller
