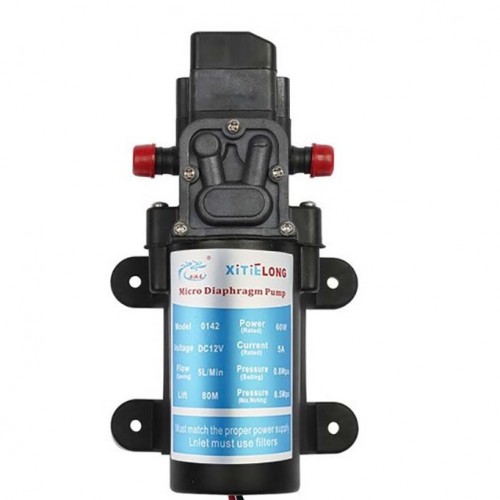

This high-quality DC micro diaphragm pump with a pressure switch will be automatically cut off when the pressure of the water outlet is big enough. And runs again when the pressure is going down. It is not a good idea let this pump runs dry for too long. This type of product can be applied to occasions, which have demand for energy conservation and frequent switchings, such as machine washing, feeding water to a solar energy system, and remote automatic controlling system of conveying water and suspending water supply, etc. CityTechBD
Product Images are shown for illustrative purposes only and may differ from the actual product.
CityTechBD CityTechBD CityTechBD CityTechBD CityTechBD
Features :
- With a pressure switch it will be automatically cut off when the pressure of water outlet is big enough. And runs again when the pressure is going down.
- The mounting feet are rubber instead of rigid plastic, which provides fairly good vibration isolation.
- Built-in pressure switch, it automatically turns on and off as you turn your tap or nozzle on and off.
- Water inlet and outlet interface connect with silicone PE or PU pipe.
- Watering configuration: much the same, additional sprinklers and timers are required
Applications:
- Garden sprinklers
- Shower
- Water taps in the boat, caravan or motor home.
- Agricultural purposes: spray for farm chemical, pesticide.
- Car Wash
- Water Refilling.
CityTechBD CityTechBD CityTechBD CityTechBD CityTechBD
| General Specification |
| Volts | DC12V |
| Power | 60W |
| Flow Rate | 5L/min |
| Maximum Working Pressure | 116psi (0.8MPA) |
| Pumping Head | 50 meters |
| Range | 7 meters |
| Size | 9.9 x 16.7cm / 3.9" x 6.6" |
| Line Length | 29cm / 11.4" |
| Package Weight | 688g |
| Shipment Weight | 0.750 kg |
| Shipment Dimensions | 11 × 8 × 7 cm |
Please allow 5% measuring deviation due to manual measurement.
CityTechBD CityTechBD CityTechBD CityTechBD CityTechBD
Package Includes:
1 x DC 12V 60W High Pressure Micro Diaphragm Water Pump Automatic Switch 5L/min Range 8m Water Pump
