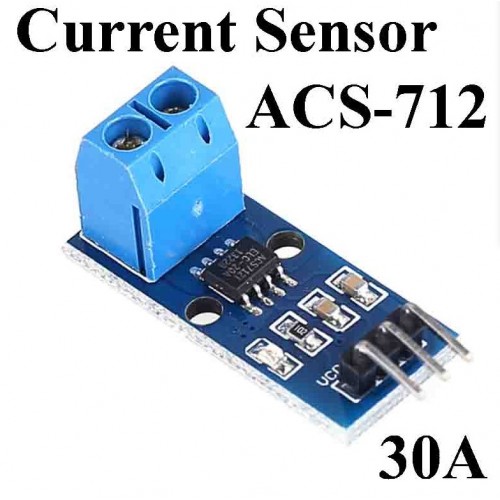

Current Sensor ACS712-30A

Description

Current Sensor ACS712-30A in Bangladesh.

The 30A range Current Sensor Module ACS712 consists of a precise, low-offset, linear Hall Circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field in which the Hall IC converts into a proportional voltage.

Sensing and controlling current flow is a fundamental requirement in a wide variety of applications including, over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc. CityTechBD

This AC721 current module is based on the ACS712 sensor, which can accurately detect AC or DC current.

The maximum AC or DC that can be detected can reach 30A, and the present current signal can be read via analog I / O port of Arduino.

Note: The color of the product may vary. while shipping you may get any one of them. CityTechBD

Connection Diagram:

Features :

  1. Low-noise analog signal path
  2. Device bandwidth is set via the new FILTER pin
  3. 5 µs output rise time in response to step input current
  4. Small footprint, low-profile SOIC8 package
  5. 2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8
  6. 5.0 V, single supply operation
  7. 66 to 185 mV/A output sensitivity
  8. Output voltage proportional to AC or DC currents
  9. Factory-trimmed for accuracy
  10. Extremely stable output offset voltage
  11. Nearly zero magnetic hysteresis
  12. The ratiometric output from the supply voltage. CityTechBD
General Specification
Current sensor chipACS712
Operating Voltage (V)4.5 ~ 5.5V DC
Measure Current Range-30 ~ +30 A
Sensitivity100mV/A
Length (mm)31
Width (mm)13
Height (mm)13.5
Weight (gm)5
Shipment Weight0.01 kg
Shipment Dimensions4 × 2 × 2 cm

Documentation:

  1. The Useful Introduction_1 from Embedded-lab.
  2. The Useful Introduction_2 from Embedded-lab.

Package Includes :

1 x Current Sensor ACS712-30A. CityTechBD
