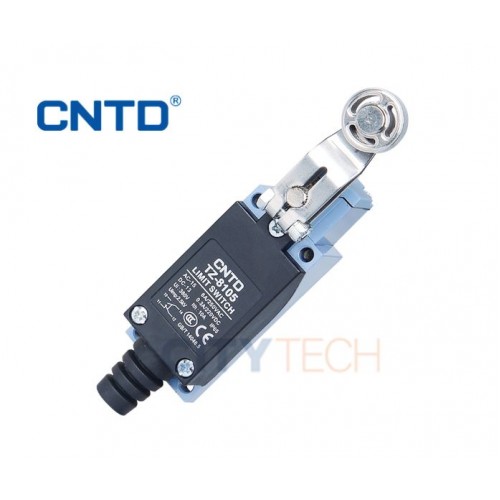

CNTD TZ-8105 Micro Limit Switch

Description

CNTD TZ-8105 Micro Limit Switch in Bangladesh (BD)

The CNTD TZ-8105 Micro Limit Switch is a durable and high-performance device designed for industrial and home automation. With a reliable snap-action mechanism, it ensures precise and consistent operation. Its compact design makes it suitable for various applications, including conveyor systems, machinery control, and more. Built with robust materials, the TZ-8105 guarantees long-lasting performance in demanding environments. Featured By CityTech BD

Features:

  • Double circuit type of limit switch
  • Conduit design for convenient cabling
  • Various actuators for different applications
  • Small size, water-proof and oil-proof construction
  • High mechanical strength,consists of intensive plastic and aluminum cast
  • Built-in contact box has double-spring and long mechanical life Smooth operation with larger over travel distance.

Specifications:

Operation speed

5mm-0.5m/s

Operating frequency

Electical: 30 operations/min

Contact resistance

25mΩ max. (initial value)

Insulation resistance

100mΩ min. (below 500VDC)

Dielectric strength

1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity

1500VAC, 50/60 Hz for 1 minute between current-carrying and non--current-carrying metal parts

1500VAC, 50/60 Hz for 1 minute between each terminal and ground

Vibration

10-55Hz,1.5mm double amplitude

Shock

Mechanical durable: 1, 000m/Sec2 (about 100G'S)

Malfunction: 300m/Sec2 (about 30G'S)

Ambient temperature

Using:-20~+70℃(With no icing)

Humidity

<95% RH

Electrical life

500,000 operations above

Degree of protection

IP65



Package Include:

1 x CNTD TZ-8105 Micro Limit Switch. CityTech BD
