Description

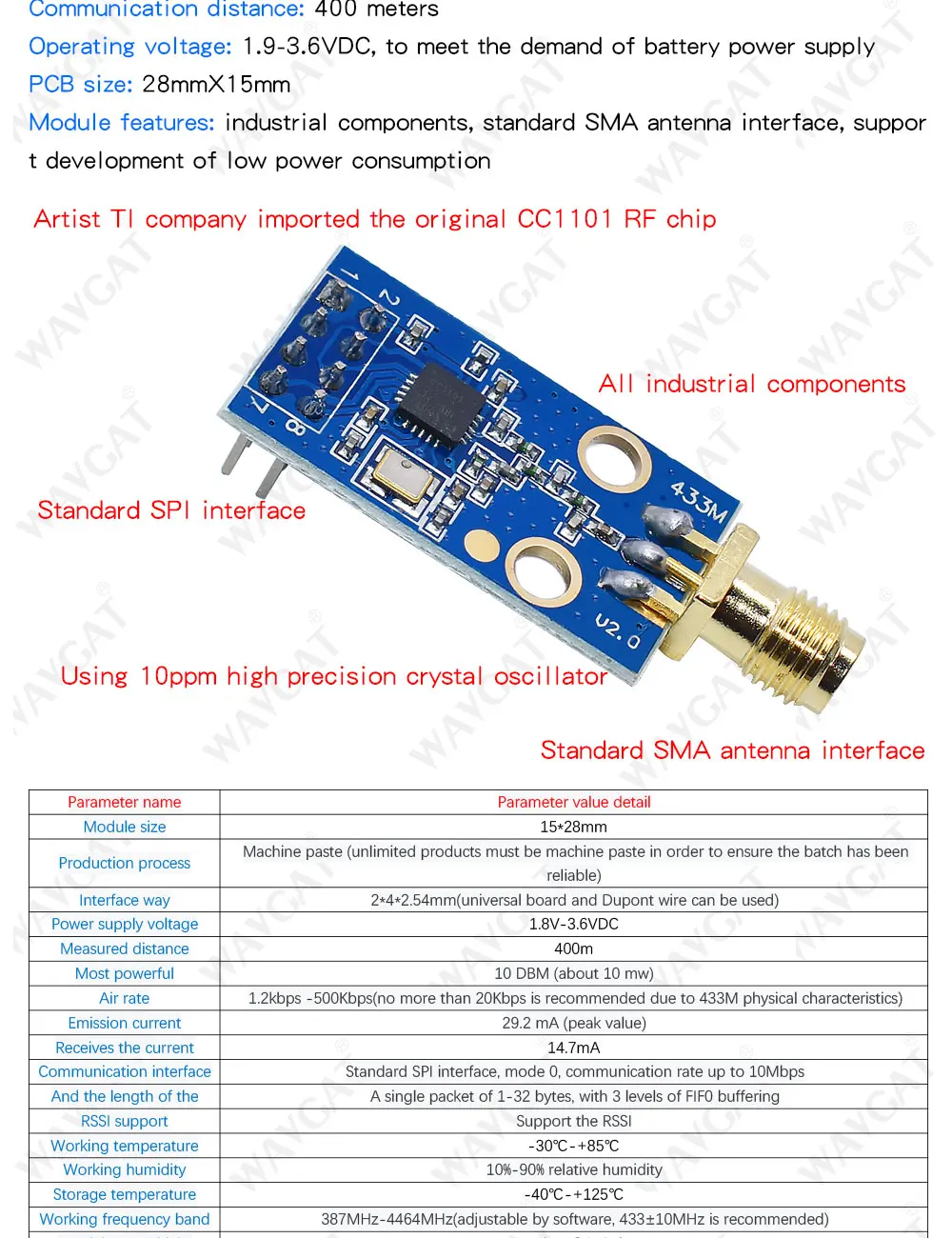

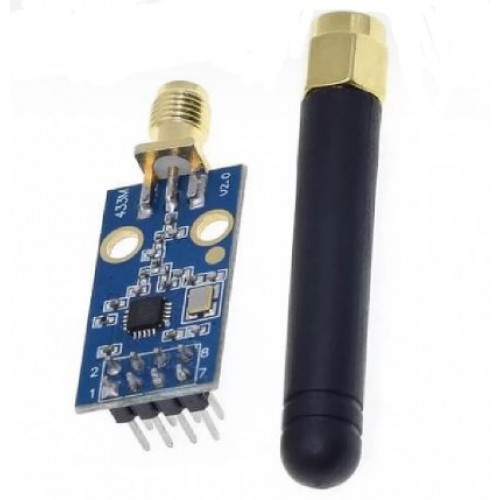

CC1101 500kbps Wireless Transceiver Module RF 433mhz SPI Interface SMA Antenna in Bangladesh
High sensibility,sight distance reliable transmission distance up to 350m;
Adopt FSK modulation,support OOK/ASK/MSK modulation;
Carrier frequency 433MHz,other ISM band such as 315M/868M/915M can be made;
Programmable control data transfer rate,as high as 500kbps;
Programmable control output power can reach +11dBm for all support band;
Can flexibly allocate various communication channels,fast frequency switching can meet the need of frequency hopping system;
Low power consumption:Power 11mw,receive current <15mA ,emission current <25mA ,dormancy current 2uA ;
Data buffer,sudden data transmission,data RSSI output,link quality indication;
Support automatic cleaning channel access(CCA) before transmission,carrier detect system;
Powerful digital features,can use cheap micro controller to get high performance RF system;
10K rate in 350m CityTechBD
| Operating Temperature | -20c to 80c |
| Voltage - Supply (Min) | 1.9V |
| Voltage - Supply (Max) | 3.6V |
| Applications | wireless reading meter |
| Input Type | DC |
