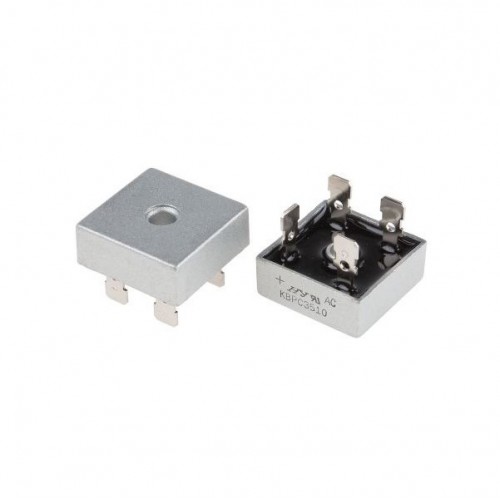

Bridge Rectifier, 35A 1000V, 4-Pin

Description

SINGLE-PHASE SILICON BRIDGE RECTIFIER

Applications:

  1. Metal case for Maximum Heat Dissipation
  2. Surge overload ratings-400 Amperes
  3. Low forward voltage drop

Features:

  1. Case: Metal, electrically isolated
  2. Epoxy: UL 94V-0 rate flame retardant
  3. Terminals: Plated .25"(6.35mm) Faston lugs, solderable per MIL-STD-202E, Method 208 guaranteed
  4. Polarity: As marked
  5. Mounting position: Any
  6. Weight: 30 grams
General Specification
Maximum Recurrent Peak Reverse Voltage VRRM1000
Maximum RMS Bridge Input Voltage VRMS700
Maximum Average Forward Rectified Output Current at Tc = 55o C IO1000
Product TypeSINGLE-PHASE SILICON BRIDGE RECTIFIER
Operating Temperature Range (°C)–55° C to +125° C
Mounting TypeThrough Hole
Shipment Weight0.035 kg
Shipment Dimensions3 × 3 × 3 cm

Documentation:

  1. Datasheet

Package Includes:

1 x Bridge Rectifier, 35A 1000V, 4-Pin
