Description

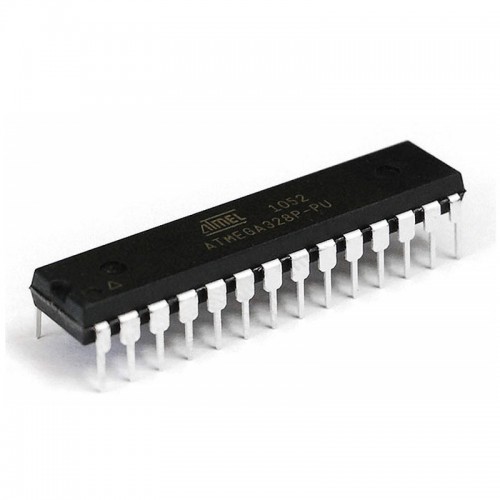

This is a Chinese version of ATmega328P-PU IC which also known as ATmega328P-U. So you may receive IC with printed name ATmega328P-U.

The ATMEGA328P- U is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega328P-PU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. RoboticsBD

The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers. RoboticsBD

The ATmega328P-PU AVR is supported with a full suite of program and system development tools including C Compilers, Macro Assemblers, Program Debugger/Simulators, In-Circuit Emulators, and Evaluation Kits. RoboticsBD

Features:

High Performance, Low Power Design:

8-Bit Microcontroller Atmel® AVR® advanced RISC architecture

131 Instructions most of which are executed in a single clock cycle
Up to 20 MIPS throughput at 20 MHz
32 x 8 working registers
2 cycle multiplier

Memory Includes:

32KB of programmable FLASH
1KB of EEPROM
2KB SRAM
10,000 Write and Erase Cycles for Flash and 100,000 for EEPROM
Data retention for 20 years at 85°C and 100 years at 25°C
Optional bootloader with lock bits
In System Programming (ISP) by via bootloader
True Read-While-Write operation
Programming lock available for software security

I/O and Package:

23 programmable I/O lines
28 pin PDIP package

Speed Grades:

0-4 MHz at 1.8-5.5V
0-10 MHz at 2.7-5.5V
0-20 MHz at 4.5-5.5V

Low power consumption mode at 1.8V, 1 MHz and 25°C:

Active Mode: 0.3 mA
Power-down Mode: 0.1 μA
Power-save Mode: 0.8 μA (Including 32 kHz RTC)

General Specification
Package/Case	PDIP-28
Minimum Supply Voltage (V)	2.7
Maximum Supply Voltage (V)	5.5
No. of I/Os	23
No. of Timers/Counters	3 Timer
Product Type	8-bit Microcontrollers – MCU
Mounting Type	Through Hole
Product Series	ATmega328P
Maximum Clock Frequency (MHz)	20
Data Bus Width	8 bit
Interface Type	I2C, SPI, USART
Program Memory Size (kB)	32
Data RAM size and Type	2kB SRAM
Data ROM Size and Type	1024 B EEPROM
Operating Temperature Range (°C)	-24 to 84
Dimensions (mm) LxWxH	34.8 x 7.5 x 4.57
Shipment Weight	0.004 kg
Shipment Dimensions	8 × 8 × 6 cm
