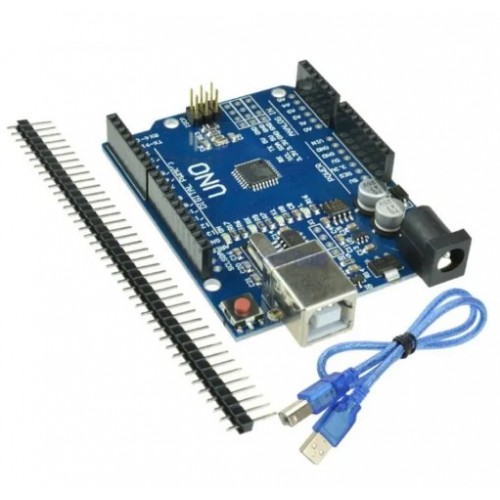

This is UNO R3 CH340G ATMega328P compatible with Arduino + Cable. A basic Arduino kit with all the components included eliminating the time our customers for finding and buying Arduino ant its basic accessories. CityTech BD
Arduino Uno R3 SMD CH340G ATmega328p Development Board is the low-cost version of the popular Arduino Uno R3. It is assembled with the CH340 USB to Serial converter chip, instead of using an Atmega16U2 chip.
Main changes from the Arduino Uno R3
1. Two rows of the holes for the pins (Male and Female). So it can be connected with normal Female Jumpers.
2. Additional 3 rows of the holes for wiring.
3. Changes to the DIP package of ATMEGA328P to flat package. CityTech BD
4. CH340G replace ATmega16U2
How to use:
1. Download the IDE Arduino
Link: http://arduino.cc/en/Main/Software (Copy to open)
2. Download the USB chip driver
Link: http://www.5v.ru/zip/ch341ser.zip (Copy to open)
3. Plug in UNO development board, the driver will be installed automatically
4. Select the UNO from the Tools>Board
5. Select the COM port from the Tools>COM
6. Upload your code. CityTech BD
Features :
- Microcontroller ATmega328 (SMD) – Interface CH340G
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limits): 5-20V
- Digital I / O Pins 14 (of which 6 provide PWM output)
- Analog Input Pins: 6
- DC Current per I Pin: 40 mA
- DC Current for 3.3V Pin: 50 mA
- Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by bootloader
- SRAM: 2 KB (ATmega328)
- EEPROM: 1 KB (ATmega328)
- Clock Speed: 16 MHz. CityTech BD
| General Specification |
| Microcontroller Chip | ATmega328 (SMD) – Interface CH340G |
| Operating Voltage | 5 V |
| Input Voltage(Recommended) | 7-12V |
| Input Voltage (limit) | 6-20V |
| Analog I/O Pins | 6 |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| PWM Digital I/O Pins | 6 |
| DC Current for 3.3V Pin | 50 mA |
| DC Current per I/O Pin | 40 mA |
| Clock Speed | 16 MHz |
| SRAM | 2 KB (ATmega328) |
| EEPROM | 1 KB (ATmega328) |
| Flash Memory | 32 KB (ATmega328) of which 0.5 KB used by bootloader |
| Power Supply Option | DC Jack or USB |
| On Board LEDs | On/Off, L (PIN 13), TX, RX |
| Operating Temperature (°C) | -40 to +90 |
| Dimensions in mm (LxWxH) | 75 x 54 x 12 |
| Weight (gm) | 26 |
| Shipment Weight | 0.16 kg |
| Shipment Dimensions | 12 × 8 × 4 cm |
Package Includes :
1 x UNO R3 Arduino.
1 x Cable for UNO. CityTech BD
