Description

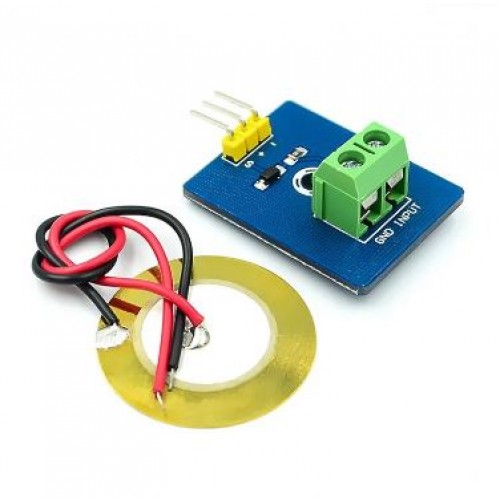

Analog Piezoelectric Ceramic Vibration Module in Bangladesh

The Analog Piezoelectric Ceramic Vibration Module is a small, versatile tool that can be used to measure the extent of vibration. The module is based on the piezoelectric effect, which means that it generates an electrical signal when it is subjected to mechanical pressure. The output voltage of the module is proportional to the strength of the vibration, so it can be used to measure the intensity of shaking or impact. CityTechBD

Features:

Measures the extent of vibration
Proportional to the strength of shock or vibration
Interface type: Analog Output

Applications:

Measuring the intensity of shaking or impact
Monitoring the vibration of machinery
Testing the performance of vibration dampers
Other applications that require the measurement of vibration

General Specification
Working Voltage	3.3V or 5V
Working Current	<1mA
Operating Temperature Range	-10 ℃ ~ + 70 ℃
Interface Type	Analog Output
Dimension (mm)	30 (L) x 23 (W) x 17 (H)
Weight	5g
Shipment Weight	0.006 kg
Shipment Dimensions	9 × 5 × 2 cm

Please allow 5% measuring deviation due to manual measurement. CityTechBD

Documentation:

To use a piezoelectric sensor is easy, just connect the positive and negative terminal to your module and press the top of sensor. By pressing, due to mechanical pressure it creates voltage at output which is further feed to the circuit. Connect the piezoelectric sensor, as shown in the video below.

Do not expose the module to high voltage or current.
Do not expose the module to extreme temperatures.
Do not use the module in a wet or humid environment.
The Analog Piezoelectric Ceramic Vibration Module is a great tool for a variety of applications.
The module is easy to use and can be connected to a variety of devices.
The module is accurate and reliable. CityTechBD
