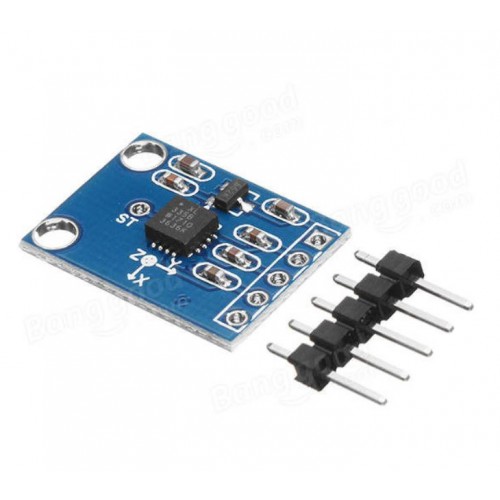

ADXL335 Module 3-axis Analog Output Accelerometer GY-61 in Bangladesh
The ADXL335 is a small, thin, low-power, complete 3-axis accelerometer with signal conditioned voltage outputs. The ADXL335 Module 3-axis Analog Output Accelerometer measures acceleration with a minimum full-scale range of ±3 g.
It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration. This breakout board comes with an onboard voltage regulator and works at both 3.3V & 5V (3-5V).
An accelerometer is an electro-mechanical device that will measure acceleration forces. These forces may be static, like the constant force of gravity pulling at your feet, or they could be dynamic – caused by moving or vibrating the accelerometer. CityTechBD
Product Images are shown for illustrative purposes only and may differ from the actual product.
Applications :
- FPV, RC, and Robots systems
- GPS navigation systems
- Impact recognition and logging
- Gaming and virtual reality input devices
- Motion-activated functions
- Intelligent power saving for handheld devices
- Vibration monitoring and compensation
- Free-fall detection
- 6D-orientation detection CityTechBD
Features :
- Onboard LDO Voltage regulator
- Can be interfaced with a 3V3 or 5V Microcontroller.
- All necessary Components are populated.
- Ultra-Low Power: 40uA in measurement mode, 0.1uA in standby@ 2.5V
- Tap/Double Tap Detection
- Free-Fall Detection
- Analog output
- Build-in ultra-low noise linear LDO voltage regulator
- Built-in onboard filters, which reduce noise from the motor and other high current electronics
- Power LED
- Designed for 5V logic level CityTechBD
| General Specification |
| Input Supply Voltage (VDC) | 3 ~ 6 |
| Each Axis Bandwidth | 50Hz |
| Operating Temperature (°C) | -40 to 90 |
| Length (mm) | 21 |
| Width (mm) | 16 |
| Height (mm) | 2.5 |
| Weight (gm) | 0.6 |
| Shipment Weight | 0.085 kg |
| Shipment Dimensions | 4 × 3 × 1 cm |
Please allow 5% measuring deviation due to manual measurement. CityTechBD
Package Includes :
1 X ADXL335 3-axis Analog Output Accelerometer Module angular transducer
