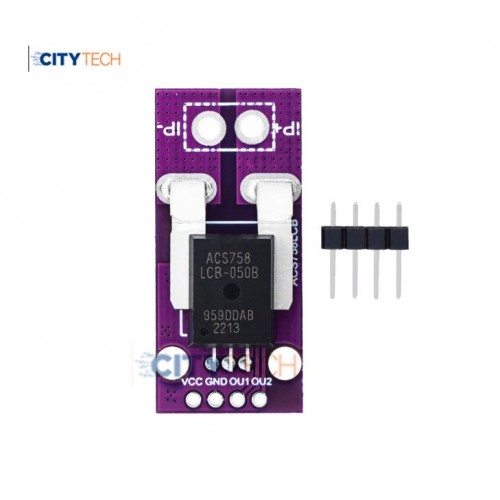

ACS758 LCB-050B-PFF-T Linear Current Sensor Hall Module MCU-758 Price in BD
The ACS758 LCB-050B-PFF-T is a high-precision linear current sensor designed for AC and DC current measurement. It features a Hall-effect-based sensing technology, providing accurate and stable readings. With a wide operating voltage range and robust construction, this sensor is ideal for industrial, automotive, and power monitoring applications. Get the best ACS758 LCB-050B-PFF-T Linear Current Sensor Price in BD at competitive rates. Featured By CityTech BD
Features and Benefits:
- Industry-leading noise performance through proprietary amplifier and filter design techniques
- Integrated shield greatly reduces capacitive coupling from current conductor to die due to high dV/dt signals, and prevents offset drift in high-side, high voltage applications
- Total output error improvement through gain and offset
- trim over temperature
- Small package size, with easy mounting capability
- Monolithic Hall IC for high reliability
- Ultra-low power loss: 100 μΩ internal conductor resistance
- Galvanic isolation allows use in economical, high-side current sensing in high voltage systems
- 3.0 to 5.5 V, single supply operation
- 120 kHz typical bandwidth
- 3 μs output rise time in response to step input current
- Output voltage proportional to AC or DC currents
- Factory-trimmed for accuracy
- Extremely stable output offset voltage
- Nearly Zero Magnetic Hysteresis
Specifications:
|
Model Type
|
Hall Current Sensor
|
|
Detection Range
|
±50A
|
|
Linearity
|
40mV/A
|
|
Operating Voltage
|
3V - 5V
|
|
Operating Current
|
13.5mA
|
|
Output Current
|
3mA
|
|
Bandwidth
|
Internal: 120 kHz
|
|
Operating
Temperature (°C)
|
-40 to 150
|
|
Storage Temperature
(°C)
|
-65 to 165
|
|
Module Dimensions
|
37mm x 18mm
|
|
Module Weight
|
8.8g
|
|
Shipment Weight
|
0.01kg
|
|
Shipment Dimensions
|
4 x 2 x 2 cm
|
Package Includes :
1 x ACS758 LCB-050B-PFF-T Linear Current Sensor. CityTech BD
