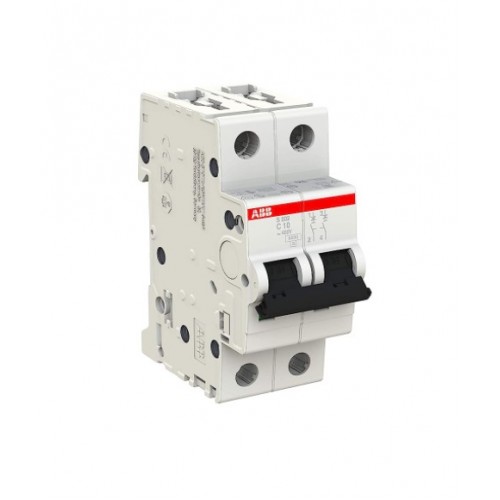

ABB MCB DP 10A 6KA Germany (Original)


ABB MCB DP 10A 6KA Germany (Original) in Bangladesh


Product CategoryDouble Pole MCB
Current Rating10A
Triping CharacteristicsC-Curve
Rated Short-Circuit Capacity6kA
Voltage230/400 V~
Rated Operating Voltage Ue440V
Insulation Voltage500V
Nominal Frequency50/60 Hz
Mounting TypeOn symmetric rail EN/IEC 60715 or DIN 35 rail.
Package Contents1 DP MCB
MaterialHalogens-free plastic materials
Made in
  • Germany

About this item

  • Wide and complete range of MCB to cover different applications and markets: Screwless, home, ring tongue, UL, universal current, direct current, marine, railway are some of the keywords in S 200 dictionary
  • Meeting worldwide standards, you can use the same basic technology throughout the world for nearly every application and installation type
  • S200 MCBs range are completed with a wide range of accessories that enlarge the functions of the MCB not only as a protection devices, but even for control and monitor remotely the installation
  • Space and time saving thanks to the unique bottom-fixing auxiliary contact
  • 1Patented twin terminals with captive screws: highest comfort, safety and flexibility. CityTechBD
