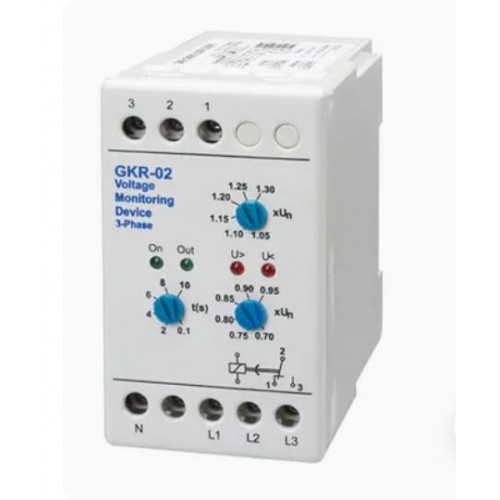

Voltage Monitoring Device 3 Phase (GKR-02)

Description

Voltage Monitoring Device 3 Phase (GKR-02) in Bangladesh (BD)


  • Protection: The voltage overload protection device can protect the battery from overcurrent, short circuit, high temperature and low power consumption.
  • Easy to care for: The voltage indicator relay is easy to use, and it can be used for a long time. you don't need to worry about cleaning after installation.
  • Excellent fitting: The voltage monitoring device has a simple design, which is very suitable for installation and disassembly.

Specifications:

Rated voltage(Un)

Look it the label of the device

Rated frquuency

50/60Hz

Operating range

(0.9-1.1)×Un

Voltage adjustment

Max: (1,05-1,03) ×Un

Min: (0,70-0,95) ×Un

Delay time

0.1-10sn.min.(adjustible)

Output contact

1C/O 8A,2000VA,

Set point hysteresis

3%

Ambient temperature

-5°C;+50°C

installition

Surface mounted or rail mounted

Dimension

Type PK10/PK21/PK25

Protection class

IP20


Package Includes:

1 x Voltage Monitoring Device 3 Phase (GKR-02). CityTech BD
