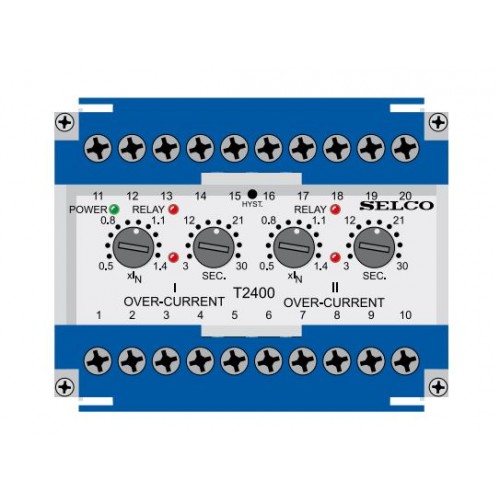

SELCO T2400-01 3-PHASE DUAL OVERCURRENT RELAY 440V

Description

SELCO T2400-01 3-PHASE DUAL OVERCURRENT RELAY 440V in Bangladesh (BD)

The Dual Overcurrent Relay T2400 includes two combined overcurrent relays, intended for protection or monitoring of generators, power transmissions and consumer’s supply. CityTech BD

Specifications :

Trip levels : 0.5 - 1.4 x IN

Delays 3 - 30 sec.

Max. voltage 660V

Voltage range 60 - 110%

Consumption Voltage 5VA at UN

Current 0.3VA at IN

Continuous current 2 x IN

Frequency range 45 - 400Hz

Output relays Normally de-energized

Contact ratings AC: 400V, 5A, 2000VA

DC: 150V, 5A, 150W

Overall accuracy ±5%

Repeatability ±1%

Operating temperature -20°C to +70°C

Dielectric test 2500V, 50Hz

EMC According to IEC/EN 61000-6-1/2/3/4

Approvals Certified by major marine classification societies

Burn-in 50 hours before final test

Enclosure material Polycarbonate. Flame retardant

Weight 0.5kg

Dimensions 70 x 100 x 115mm (H x W x D)

Installation 35mm DIN rail or 4mm (3/16”) screws
