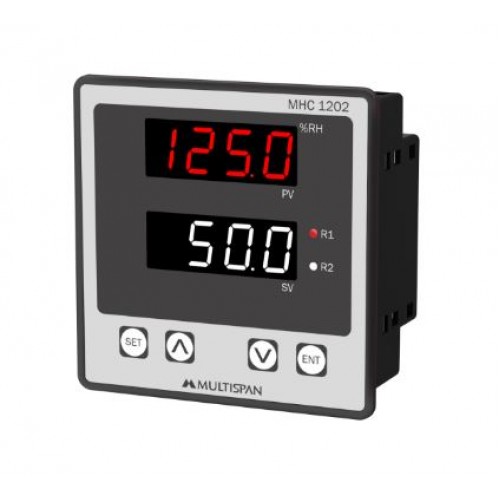

Humidity Controller MHC1202 (MULTISPAN) in Bangladesh (BD)
Specifications : Humidity Controller MHC1202
- Humidity Sensor Input
- 2-Relay Output for Humidification/Dehumidification Function
- RS-485 Modbus
- Analog Retransmission output.
- Size: (H)96mm x (W)96mm x (D)54mm
- Supply Voltage: 100-270V AC. CityTech BD
Technical Specification: |
Display | Upper display, 7-Seg, Red 0.56” LED for Process Value |
Lower display, 7-Seg, White 0.56” LED for Process Set Value |
Dimension | Size (mm): 96(H) X 96(W) X 54(D) |
Panel Cutout | 92 (H) X 92 (W) |
Input | RH-100 ( Humidity) |
Range | Humidity (0.0 TO 100.0 % RH) |
Supply | 100 To 270V AC, 50/60 Hz, Approx 4VA |
Output | 2Relay 1C/O (On-Off) |
Protection Level | IP-65 (Front side) As per IS/IEC 60529 : 2001 |
Package Includes:
1 x Solenoid Valve 4v210-08 4V310-10 4V410-15 two Way Valve. CityTech BD
