Description

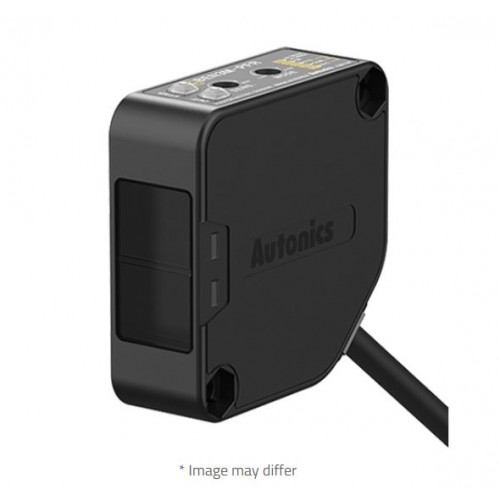

Autonics - BEN300-DFR in Bangladesh
The BEN series photoelectric sensors with built-in amplifiers are available in universal AC/DC types and DC types. Light ON/Dark ON operation mode switch and sensitivity adjusters are available for easy configuration and set up (except through-beam types). The specialized sensor IC provides high performance in various user applications. CityTech BD
Sensor, Photoelectric, Diffuse Reflective, 300mm, Free Power, Contact Output (Relay)
- Sensing type : Diffuse reflective type
- Sensing distance : 300mm
- Sensing target : Opaque, Translucent material
- Light source : Infrared LED(940nm)
- Response time : Max. 20ms
- Power supply : 24-240VAC~ ±10% 50/60Hz, 24-240VDC
±10%(ripple P-P: max. 10%) - Operation mode : Light ON/Dark ON(set by switch)
- Control output : Relay
| BEN300-DFR | |
| Type of Photoelectric | See Spec or N/A |
|---|---|
| Sensing Method | Diffuse Reflective |
| Size | See Spec |
| Connection | See Spec |
| NPN or PNP | NPN/PNP Selectable |
| Product Series | See Specs |
| Ratings | See Spec |
| Manufacturer | Autonics |
| Availability | Please Contact Us |
| Weight - lbs. | 0.500000 |
| Base Unit of Measure | Each |
