If you are new in multirotor/drone hobby area and want to try out some basic multirotor designs so as to enhance your basic knowledge about multirotor!!! Don’t wait and get this combo of 8020 Magnetic Micro Coreless Motor for Micro Quadcopters – 1xCW & 1xCCW. CityTechBD
This 8020 Magnetic Micro Coreless Motor is very compact and lightweight DC motor nicely crafted for perfectly matching with your small 100mm like multirotor frames.
They are rated at 39000 RPM which is more than needed to lift and push your drone to the target. These are less noisy with low resistance. The only drawback of using coreless is the amount of torque they provide, as they are High Speed and Low Torque motors. CityTechBD
Features :
- 8020 Coreless motor is High Speed and Low Torque motor.
- Less noisy operation.
- Offers low resistance.
- They are equipped with high-quality magnets.
- This coreless motor supports 1S battery.
General Specification |
Model | 8020 |
Rated Speed (RPM) | 39000 |
Rated Voltage(V) | 3.7 |
Rated Current(A) | 0.15 |
Operating Temperature (°C) | -10 to 50 |
Rated RPM | 30500 |
Rated Load Current (mA) | 1620 |
Motor Color | Silver |
Motor Material | Metal |
Motor Diameter(mm) | 8.0 |
Motor Length (mm) | 20 |
Shaft Diameter (mm) | 1 |
Cable Length (cm) | 6 |
Shipment Weight | 0.015 kg |
Shipment Dimensions | 12 × 8 × 2.5 cm |
CityTechBD CityTechBD CityTechBD CityTechBD CityTechBD
Package Includes :

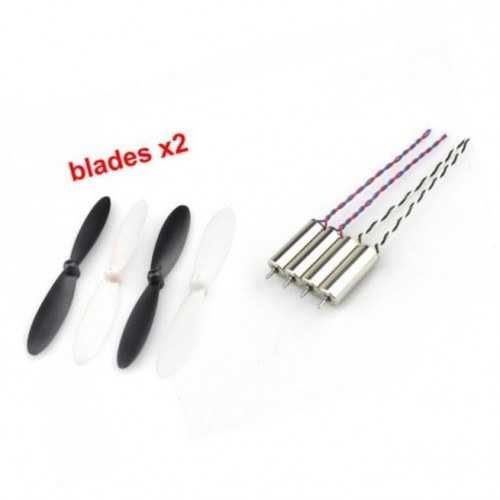

1 x 8020 Magnetic Micro Coreless Motor (CW)
1 x 8020 Magnetic Micro Coreless Motor (CCW)
