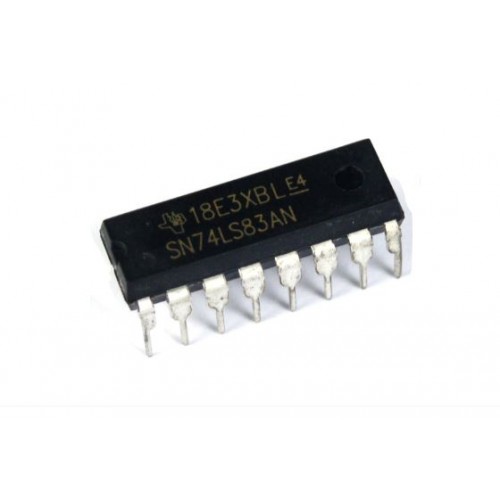

The 7483 Adder (IC 7483) is a high-speed 4-Bit binary Full Adder with internal carry lookahead. It accepts two 4-bit binary words (A1–A4, B1–B4) and a Carry Input (C0). It generates the binary Sum outputs ∑1–∑4) and the Carry Output (C4) from the most significant bit. The LS83A operates with either active HIGH or active LOW operands (positive or negative logic). The 7483 Adder (IC 7483) is recommended for new designs since it is identical in function with this device and features standard corner power pins. CityTech BD
Features:
- 4-BIT BINARY FULL ADDER WITH FAST CARRY
- LOW POWER SCHOTTKY
- Outputs Directly Interface to CMOS, NMOS and TTL
- Wide Operating Conditions
- Large Operating Voltage Range CityTech BD
General Specification |
Package/Case | PDIP-16 |
Minimum Supply Voltage (V) | 4.75 |
Maximum Supply Voltage (V) | 5.25 |
Product Type | 4-BIT BINARY FULL ADDER WITH FAST CARRY |
Operating Temperature Range (°C) | –55° C to +125° C |
Mounting Type | Through Hole |
Shipment Weight | 0.005 kg |
Shipment Dimensions | 3 × 3 × 3 cm |
Documentation:
- Datasheet
Package Includes:
1 x 7483 Adder (IC 7483). CityTech BD
