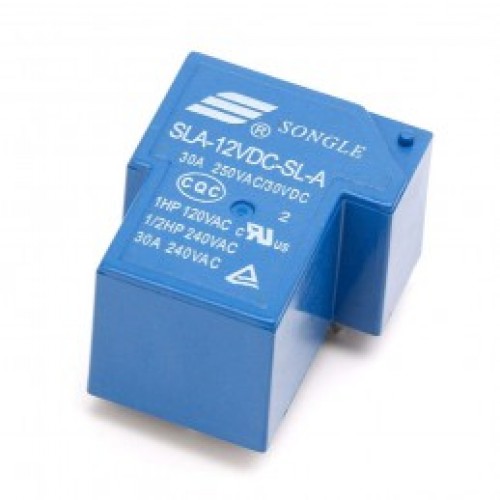

It is an SLA-12VDC-SL-A 4Pin 30A Power Relay. The relay is switched with the help of a small signal from a microcontroller like an Arduino. This relay can be used to drive 30A devices. CityTech BD
Features:
- SONGLE Power Relay SLA-12VDC-SL-C DC 12V Type T93 30A
- 12VDC 30A 250VAC 30VDC
- 5 pin
- PCB Type
- Control input : 12VDC
- Max Load rating : 30A at 250AC ,30A at 30VDC
- SPST 1NO 1NC
CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD
General Specification |
Operating Voltage (VDC) | 12 |
Supply Current (A) | 0.077 |
Operating Temperature (°C) | -25 to 70 |
Opt. Relative Humidity(RH) | 45% ~ 85% |
Storage condition (℃) | -25 to 70 |
Length (mm) | 26.85 |
Width (mm) | 31 |
Height (mm) | 19.7 |
Weight (gm) | 24 |
Shipment Weight | 0.027 kg |
Shipment Dimensions | 3 × 4 × 2 cm |
CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD
Package Includes:
1 x 5PIN 12V 30A Power Relay
