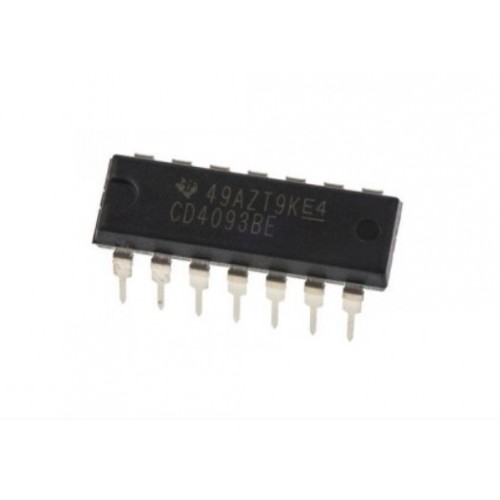

4093 NAND Gate

Description

The CD4093B consists of four Schmitt-trigger circuits. Each circuit functions as a 2-input NAND gate with Schmitttrigger action on both inputs. The gate switches at different points for positive and negative-going signals. The difference between the positive (VT +) and the negative voltage (VT-) is defined as hysteresis voltage (VH). All outputs have equal source and sink currents and conform to standard B-series output drive (see Static Electrical Characteristics). CityTech BD

Features

  • Wide supply voltage range: 3.0V to 15V
  • Schmitt-trigger on each input with no external components
  • Noise immunity greater than 50%
  • Equal source and sink currents
  • No limit on input rise and fall time
  • Standard B-series output drive
  • Hysteresis voltage (any input) TA = 25°C Applications
  • Wave and pulse shapers
  • High-noise-environment systems
  • Monostable multivibrators
  • Astable multivibrators
  • NAND logic

Specification:

  •  Supply Voltage Range:-0.5V to +20V
  •  Input Voltage Range,All Inputs:-0.5V to VDD+0.5V
  •  DC Input Current,Any One Input:±10mA
  •  Power Dissipation Per package:500mW(For TA=-55°C to +100°C)
