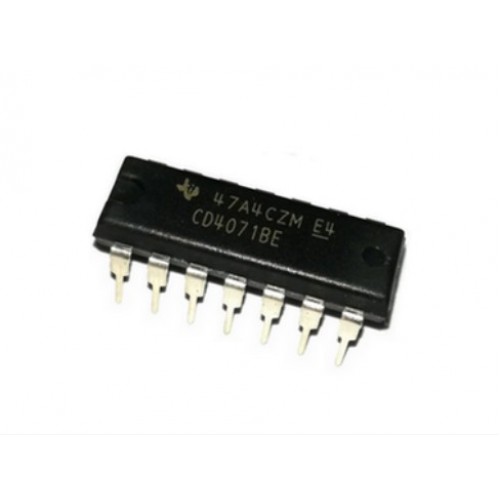

4071 OR Gate

Description

The CD4071 quad OR gates are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors. They have equal source and sink current capabilities and conform to standard B series output drive. The devices also have buffered outputs which improve transfer characteristics by providing very high gain. All inputs protected against static discharge with diodes to VDD and VSS. CityTechBD

  • Supply Voltage Range:-0.5V to +20V
  • Input Voltage Range,All Inputs:-0.5V to VDD+0.5V
  • DC Input Current,Any One Input:±10mA
