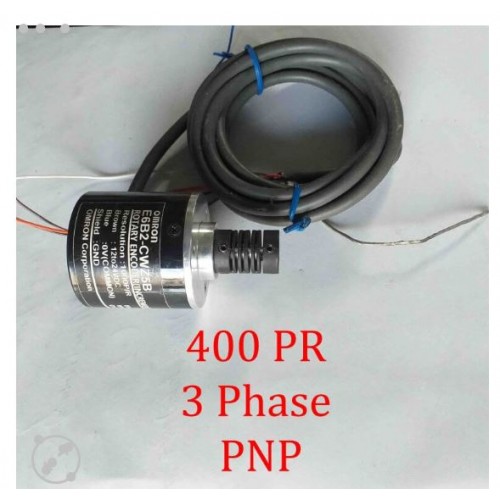

400 PR Encoder Omron (E6B2CWZ5B) in Bangladesh.
Product Name: 400 PR Rotary Encoder Omron (E6B2CWZ5B )
Model: E6B2CWZ5B
Brand: Omron
Power supply voltage: 12 VDC −10% to 24 VDC+15%, ripple (p-p): 5% max
Current Conjumption: 100 mA max.
Output Phase: A, B, Z Phase.
Output Configuration: PNP open-collector output
Output Capacity: Applied voltage: 30 VDC max.
Source current: 35 mA max.
Residual voltage: 0.4 V max.(at source current of 35 mA)
Source current: 35 mA max.
Residual voltage: 0.4 V max.(at source current of 35 mA)
Maximum Responce Frequecny: 50KHz
Starting Torque: 0.98 mN·m max.
Moment of inertia: 1×10−6 kg·m2 max.; 3 × 10−7 kg·m2 max. at 600 P/R max.
Maximum permissible speed: 6,000 r/min
Ambient temperature range: Operating: −10 to 70°C (with no icing), Storage: −25 to 85°C (with no icing)
Weight (packed state): Approx. 100 g. CityTech BD
● Mounting
• Origin Indication
It is easy to adjust the position of phase Z with the origin indication function. The following illustration shows the relationship between phase Z and its origin. Set cut face D to the phase Z origin as shown in the illustration.
• Do not extend the length of the cable to more than 2 m. If the cable must be more than 2 m, use a Model with a Line-driver Output (max. length: 100 m). CityTech BD
It is easy to adjust the position of phase Z with the origin indication function. The following illustration shows the relationship between phase Z and its origin. Set cut face D to the phase Z origin as shown in the illustration.
• Do not extend the length of the cable to more than 2 m. If the cable must be more than 2 m, use a Model with a Line-driver Output (max. length: 100 m). CityTech BD
● Wiring
Spurious pulses may be generated when power is turned ON and OFF. Wait at least 0.1 s after turning ON the power to the Encoder before using the connected device, and stop using the connected device at least 0.1 s before turning OFF the power to the Encoder. Also, turn ON the power to the load only after turning ON the power to the Encoder.
Note: Product Images are shown for illustrative purposes only and may differ from the actual product. CityTech BD
Package Includes :
1 x 400 PR Encoder Omron (E6B2CWZ5B). CityTech BD
