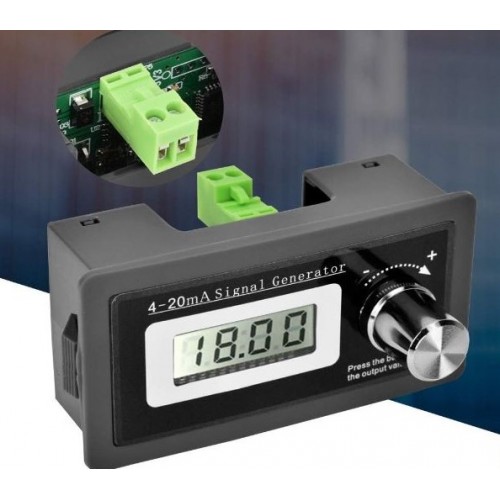

4-20mA Signal Generator Current Loop Simulator Tester in Bangladesh
Analog 0-12V 4-20mA Signal Generator for PLC and Panel Debugging & Device Testing is designed to simulate 0-12V voltage signal and 0-24mA current signal for PLC and panel Debugging, Device Testing, Frequency Converter, Flow Valve, etc. Very easy to use, it can be connected with micro USB 5V power supply. What’s more, it can display 4 different types of digits, 0-12V voltage, 0-24mA current, 0-100 percent, and 0-50HZ. It plays an important role in your electronics work. CityTechBD
Features:
- Power Supply: external micro USB-5V.
- Voltage Output: 0-12V, precision is 0.01V, rotate the encoder knob to adjust the output voltage, can be calibrated.
- Current Output: 0-22mA, precision is 0.01mA, rotate the encoder knob to adjust output current, can be calibrated.
- Multiple Display: just push the small button to switch the display mode between voltage and current, you can also follow the instructions to switch 0-100 percent or 0-50HZ display. CityTechBD
| General Specification |
| Item Model: | JS-420ISG-V2 |
| Supply Voltage: | 15 - 30V |
| Output Range: | 4 - 20mA / 3 - 21mA |
| Display: | Actual Current / Percentage / Hz |
| Sampling Resistance: | ＜500 Ω |
| Output Accuracy: | 0.50% |
| Display Accuracy: | 0.01 |
| Color: | Shown As Pictures |
| Size: Approx. | 8 * 4.2 * 4.5cm / 3.14 * 1.65 * 1.77inch |
| Weight: | 44g |
| Type: | Signal Generator |
| Shipment Weight | 0.05 kg |
| Shipment Dimensions | 8 × 4.5 × 4.5 cm |
Note: Please allow 5% measuring deviation due to manual measurement. CityTechBD
System operation：
Parameter Settings:（Rotate one grid clockwise is "+" Rotate one grid counter-clockwise is "-", Press the knob. is "Confirm"）
- Press and hold the knob for 2 seconds to enter the parameter setting, Display parameter number "F001", Then press "Confirm ", to Set the value of parameter "F001", =0 is coarse tuning; =1 Fine tuning; Then press "Confirm" to save its value.
- When the parameter number "FXXX" is displayed, "+" "-" Rotation modification parameter number; Enter the password first "+ - - +", To enter the F002 parameter; Enter the password first "+ - + -", To enter the F100 parameter; Enter the password first "- + - +", To enter the F200 parameter. CityTechBD
Package Includes:
1 x 4-20mA Signal Generator Current Loop Simulator Tester. CityTechBD
