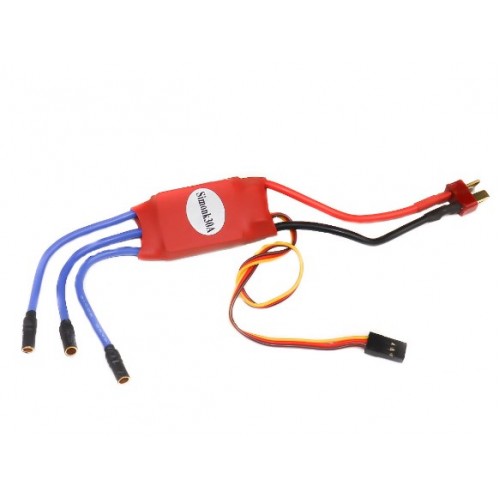

HW30A 30A ESC Brushless Motor Speed Controller

Description

Standard BLDC 30 amp ESC Electronic Speed Controller with Connector is specifically made for quadcopters and multi-rotors. It provides faster and better motor speed control giving better flight performance compared to other available ESCs.

STANDARD 30 amp ESC Electronic Speed Controller can drive motors that consume up to 30A current. It works on 2-3S LiPo batteries. The onboard BEC provides regulated 5V(2A max draw) to power the flight controller and other onboard modules. This is useful to control our brushless motors with a 2-3S LiPo (make sure the motor doesn’t draw more than 30A).

Features:

  1. This 30 amp ESC for BLDC has onboard BEC
  2. This ESC comes with a male dean T-connector
  3. Auto Low BATTERY Slow down at 3.0V/cell Lipo, cut-off at 2.9V/cell lipo
  4. APPLICATION: Multirotors, Rc Airplanes, etc
General Specification
ModelStandard 30A BLDC ESC
Burst Current (A)40
Constant Current (A)30
BECYes (5V/3A)
Suitable Lipo Batteries2 ~ 3S Lipo and 4 ~ 10s Ni-Mh/Ni-CD
ColorRandom
ApplicationBLDC Motors, Multirotors, Rc Planes etc.
Length (mm)45
Width (mm)24
Height (mm)9
Weight (gm)23
Shipment Weight0.027 kg
Shipment Dimensions10 × 10 × 6 cm

-

Package Includes:

1 x HW30A 30A ESC Brushless Motor Speed Controller
