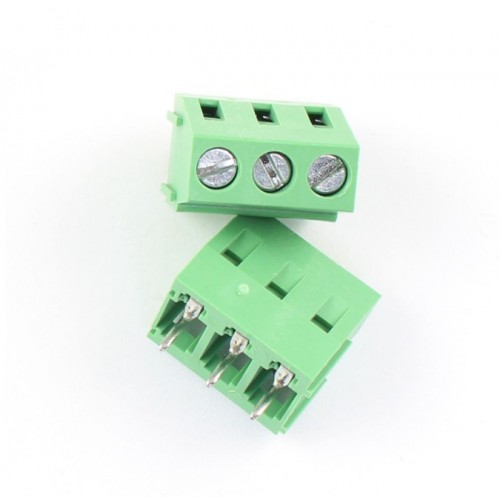

3 Pin Pitch 5.0mm Straight Pin Screw PCB Terminal Block Connector in Bangladesh
3 Pin 5.08mm Pitch Plug-in Screw Terminal Block Connector is a type of electrical connector, frequently used to connect wires to the PCB. The connector has a screw in each pin to fasten the wire securely. It has tin-plated brass for pin header and has nickel-plated brass contacts. CityTechBD
The connector is made of PBT (Polybutylene terephthalate) which is mechanically strong, heat resistant(UL94-0) and has good insulation properties.
Features:
- Pin header: Tin plated brass.
- Contacts: Nickel-plated brass.
- Strong, compact, lightweight.
- Heat resistant. CityTechBD
General Specification |
Connector | PCB Terminal Block |
Termination | Screw |
No. of Contacts | 3 |
Allowed Wire Size (AWG) | 24 ~ 16 |
Voltage(V) | 220V AC |
Operating Current (A) | 10 |
Mounting Type | Through Hole |
Pin Spacing (mm) | 5.08 |
Material | Metal and plastic |
Length (mm) | 15 |
Width (mm) | 10.3 |
Height (mm) | 14.12 |
Weight (gm) | 1 (approx.) (each) |
Shipment Weight | 0.005 kg |
Shipment Dimensions | 3 × 3 × 3 cm |
Documentation:
CityTechBD CityTechBD CityTechBD CityTechBD CityTechBD CityTechBD
Package Includes:
1 x 3 Pin Pitch 5.0mm Straight Pin Screw PCB Terminal Block Connector
