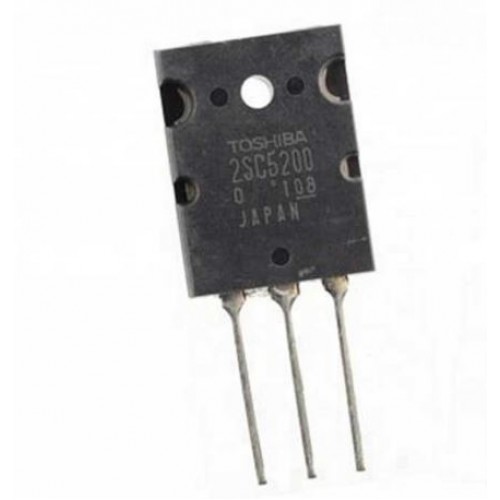

2SC5200 Amplifier NPN Power Transistor_Toshiba

Description

2SC5200 Amplifier NPN Power Transistor_Toshiba in Bangladesh

The 2SC5200 is a high power NPN Transistor with a collector to emitter voltage of 230V and collector current of 30A. The transistor is available in TO-264 package and is commonly used Amplifier designs. CityTechBD

Pin Configuration

Pin Number

Pin Name

Description

1

Base

Controls the biasing of transistor, Used to turn ON or OFF the transistor

2

Collector

Current flows in through collector, normally connected to load

3

Emitter

Current Drains out through emitter, normally connected to ground

Features

  • High-power NPN Transistor
  • DC Current Gain (hFE) 55 to 160
  • Continuous Collector current (IC) is 15A
  • Collector-Emitter voltage (VCE) is 230 V
  • Collector-Base voltage (VCB) is 230V
  • Emitter Base Voltage (VBE) is 5V
  • Transition Frequency is 30MHz
  • Available in To-264 Package. CityTechBD

PACKAGE INCLUDES:

1 x 2SC5200 Amplifier NPN Power Transistor_Toshiba CityTechBD
