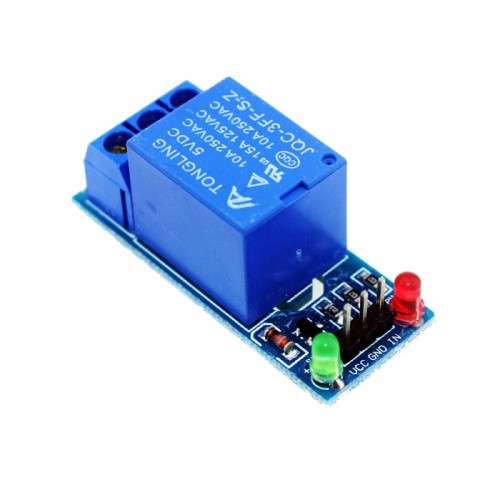

1 Channel 5V Relay Board Module

Description

It is a 1 Channel 5V Relay Board Module. The relay normally open interface maximum load: AC 250V/10A, DC 30V/10A. It has a trigger current of 5mA, and module working voltage of DC 5V. Each channel of the module can be triggered by a jumper to set a high level or a low level. Fault-tolerant design, even if the control line is disconnected, the relay will not move. With status indicator: power (green), 1-channel relay status indicator (red). All module size interfaces can be directly connected through the terminal block, which is convenient and practical. CityTechBD

Features:

  1. 5V 1-Channel Relay interface board, and each one needs 15-20mA Driver Current
  2. Equipped with high-current relay, AC250V 10A ; DC30V 10A
  3. It has a relay status indicator led Power LED(Green), 1 relay status indicator LED(Red)
  4. Relay control interface by single-chip IO.
  5. Low-level suction close, high-level release.
  6. Easy to use, simple 3 line structure.
  7. Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
General Specification
Operating Voltage (VDC)3 ~ 5
Trigger Voltage (VDC)5
Trigger Current (mA)20
Switching Voltage (VAC)250@10A
Switching Voltage (VDC)30@10A
Operating Temperature (°C)-40 to 85
Opt. Relative Humidity(RH)20% ～ 85%
Storage condition (℃)– 65 to 175
Length (mm)43
Width (mm)26.3
Height (mm)17
Weight (gm)14
Shipment Weight0.018 kg
Shipment Dimensions8 × 5 × 2 cm

Package Includes:

1 x 1 Channel 5V Relay Board Module
